Tutorial: 3D Printed Measure Gun Based on Arduino Nano

INTRODUCTION

You can do a lot of practical printing with your 3D printer, but teaming it up with some electronic parts can be that icing on the cake.

Like this latest Measure Gun project we made, it's 2 electrical tools that can detect the distance by ultrasonic wave or IR laser, controlled by an Arduino Nano, and simply printed on the ELEGOO Mars LCD 3D Printer.

Ultrasonic Measure Gun: Range 0-250cm	Laser Measure Gun: Range 2mm-1100mm (Accuracy ± 2mm)

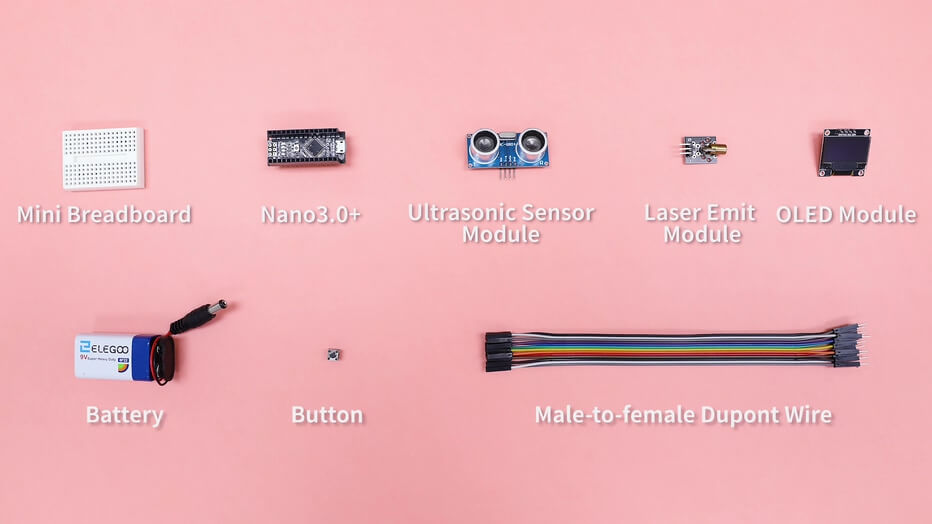

THINGS USED IN THIS PROJECT

Ultrasonic Measure:

Laser Measure:

Featured product:

• ELEGOO Mars LCD 3D Printer
• ELEGOO ELEGOO Upgraded Nano V3.0+

ASEEMBLY INSTRUCTION

You can learn how to make this 3D-printed gadget step-by-step in the video below:

DOWNLOAD CODE, SKETCH AND STL. FILE

Download code, sketch and stl. files:👉 http://bit.ly/2tc1Whh

And don't forget to share your makings with us on social networks.
